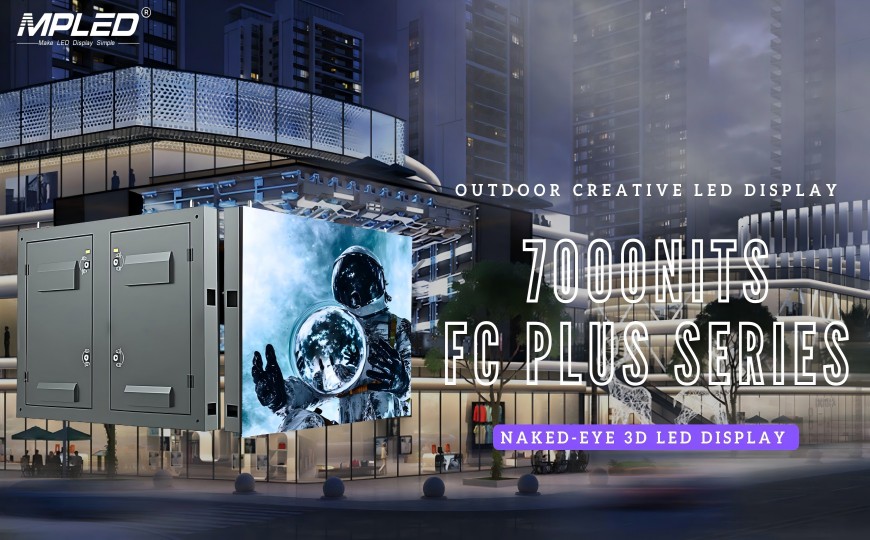

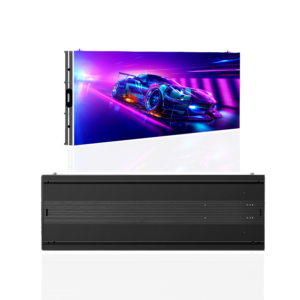

FC Plus Series
Naked-eye 3D LED Display
FC Plus Series
Outdoor Creative Led Display
Dimension: 960*960*135mm
Pixel Pitch : P4mm,P5mm,P6mm,P8mm,P10mm

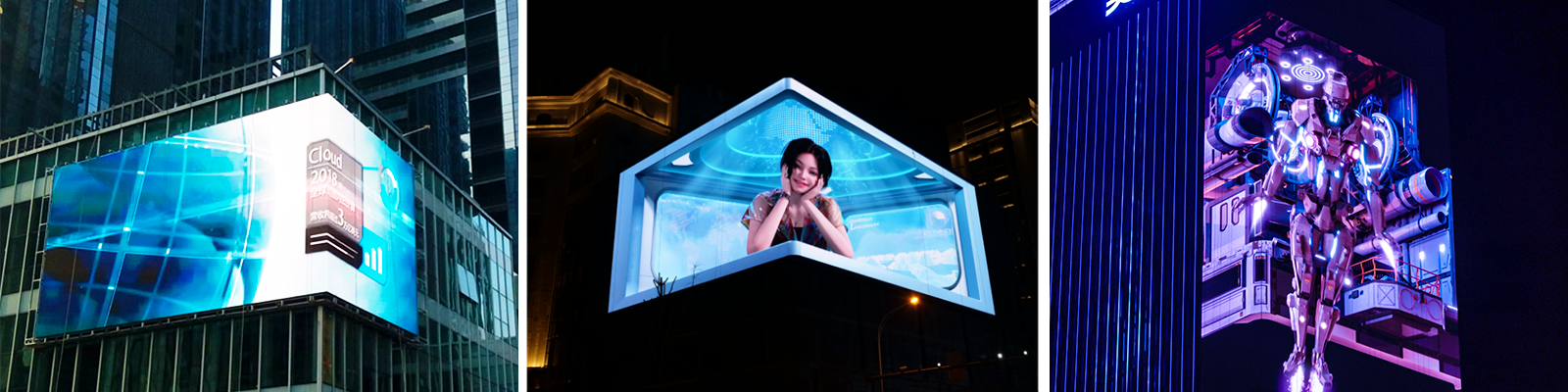

Applications: museums,supermarkets,city landmarks,luxury stores,and star hotels,airport,subway
Cable free
Creative splicing
Front & Rear maintenance
High brightness
Support customization
High contrast
-
Video
-
One-Stop Solution
-
Characters
-
Reference Project
-
Specification
-
Related Products
FC Plus Series
How to Seek Solution?
Choose right LED display products for your projects
What's Service MPLED can offer you?
One-Stop Solution: With 20+ years experts team,MPLED provides the most comprehensive solution for your project, which makes your business easier,more professional and competitive.

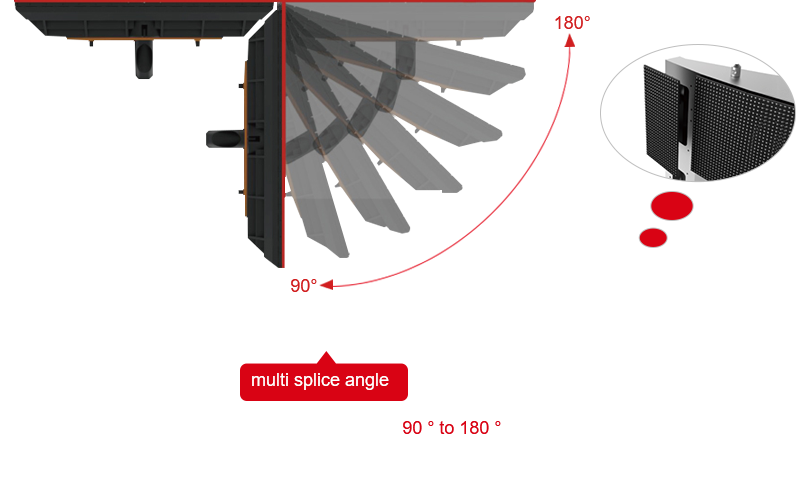

Various Angles Available
Provide multi-angle adjustable functions,and achieve a more flexible experience through high-quality seamless splicing technology.

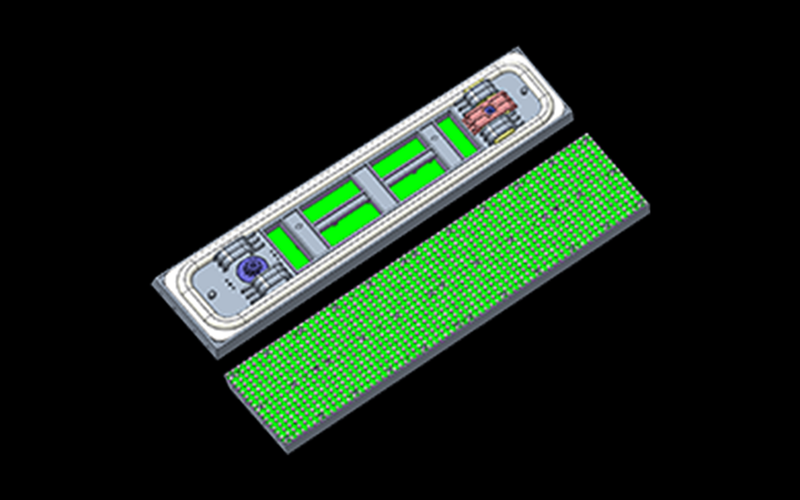

Curved Parts Screen
W48*H192mm module size:P6;
W80*H160mm module size:P4
W80*H320mm module size:P4,P5,P10;
W64*H320mm module size:P8
100 % Customized and waterproof ;
It can make the screen realize any shape base on project requeriement.

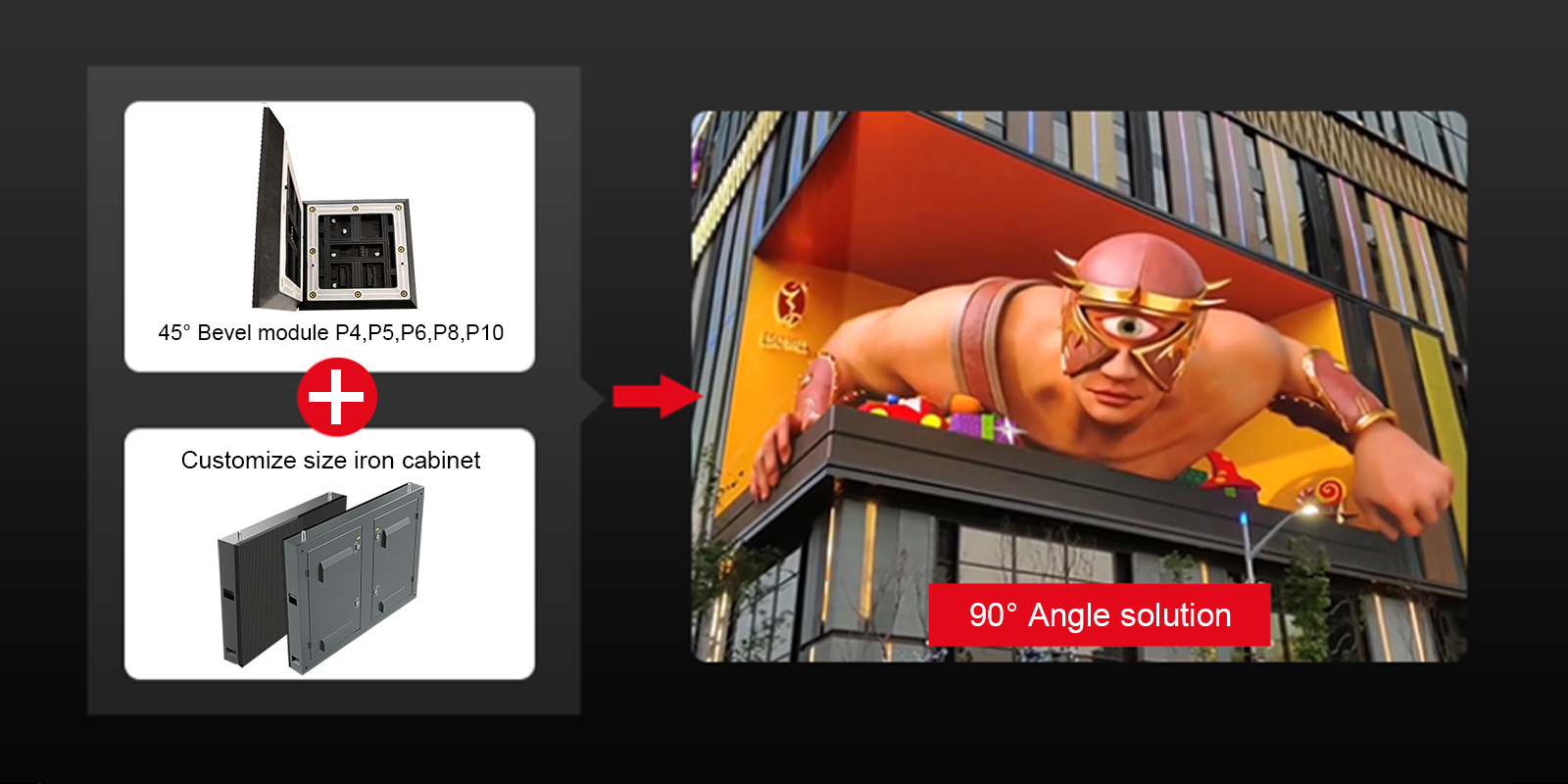

90° Angle Solution
Adopted unique current sharing technology allows you to get rid of the trouble of black screen caused by power failure and ensure the smooth progress of activities.

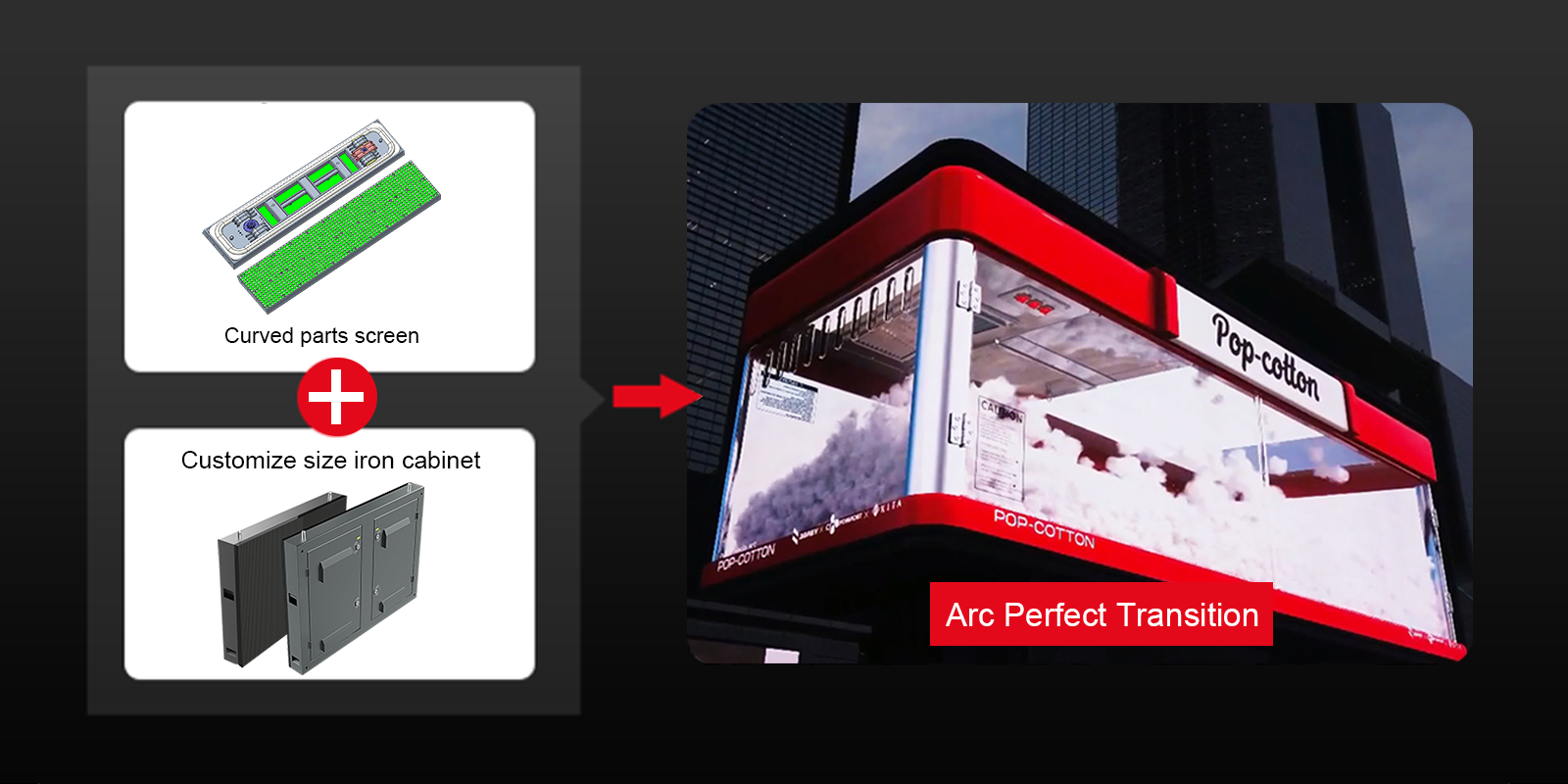

Perfect Arc Trasition

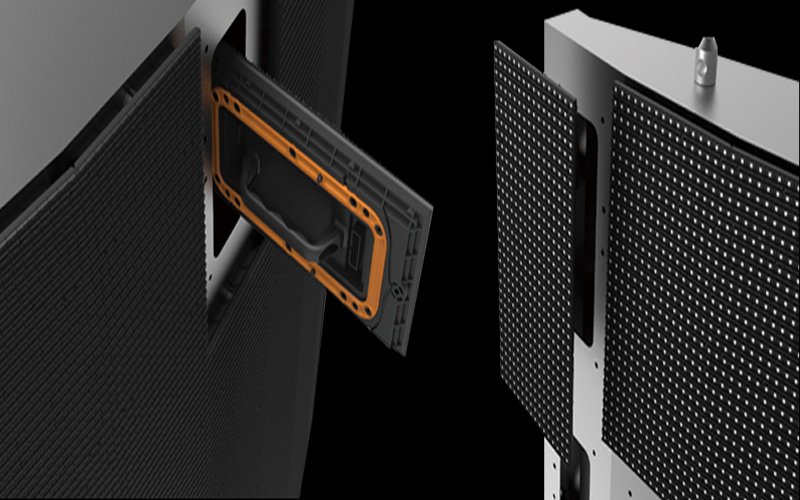

Front & Rear Maintenance
Multiple maintenance methods for different occasions,convenient and fast.

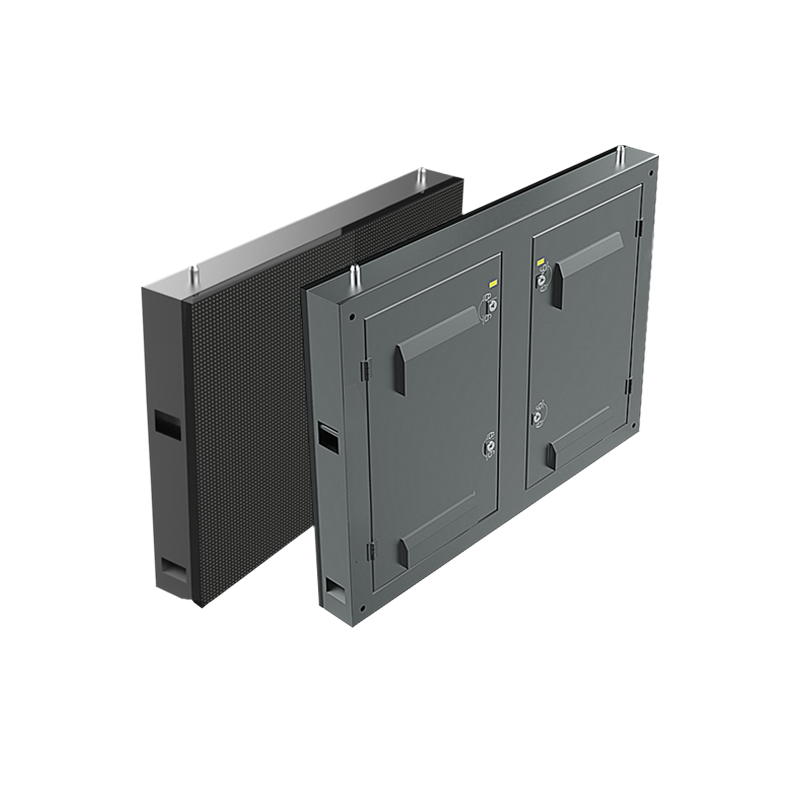

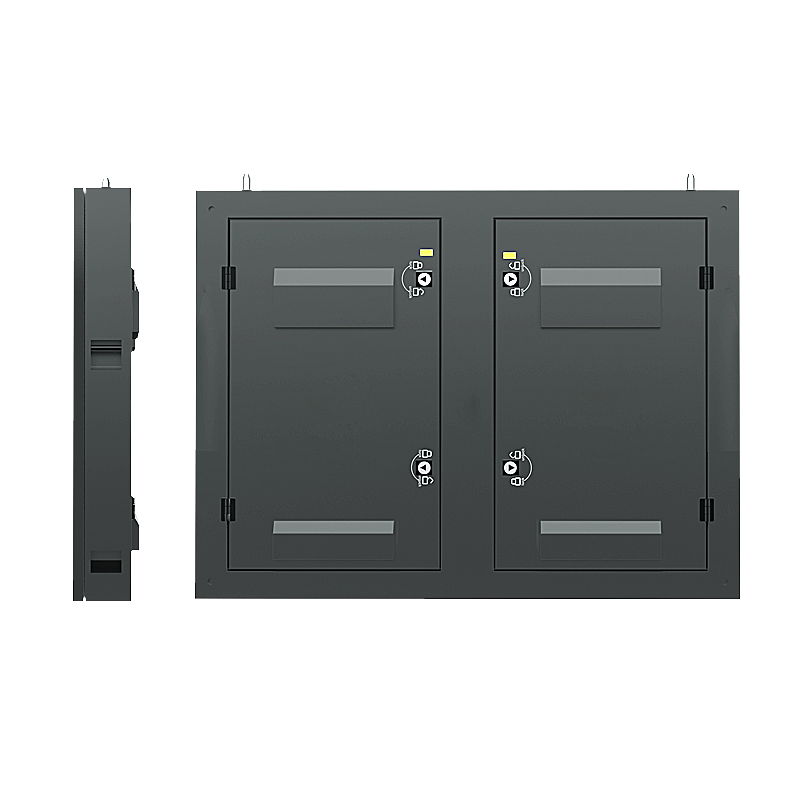

Custom Cabinets

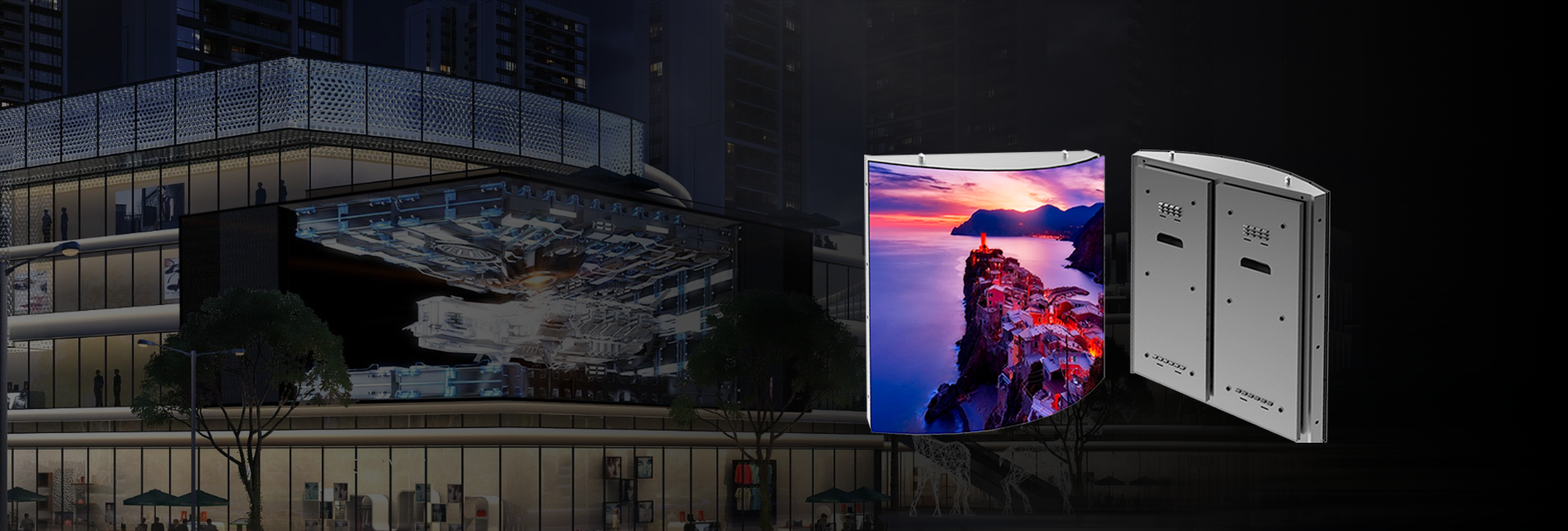

Various shapes (L-shaped,arc-shaped,cylindrical, spherical) can be customized to meet the modeling needs of different venues,and are used in CBD commercial centers,historic sites,museums,city landmarks,luxury stores,star hotels,airports,high-speed rail stations and other scenes
Accessories
Global LED Display Solution Provider

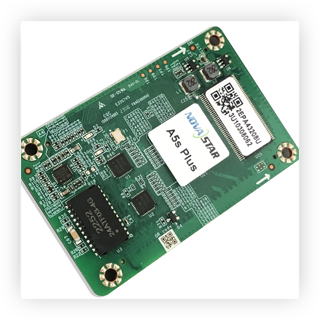

Novastar Received Card

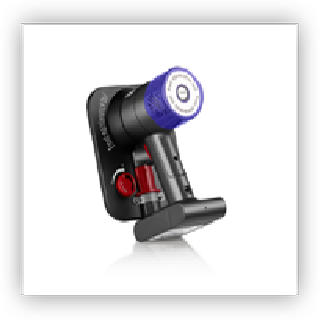

Front Maintenance Tool

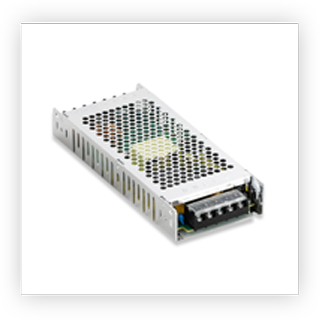

Power Supply
Video Processor
Reference Project
Parameters
| Parameter | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch | 4mm | 5mm | 6mm | 8mm | 10mm |
| LED Lamp | SMD1515 | SMD1921 | SMD3535 | SMD3535 | SMD3535 |
| Pixel Density (dots/㎡) | 147456dots/㎡ | 112896dots/㎡ | 65536dots/㎡ | 112896dots/㎡ | 65536dots/㎡ |
| Module Size (mm) | W80*H160mm/W80*H320mm | W80*H320mm | W48*H192mm | W64*H320mm | W80*H320mm |
| Brightness(nits) | 6000-6500nits | 6500-7000nits | |||
| Refresh rate(Hz) | Standard refresh:1920Hz,High refresh:3840Hz | ||||
| Panel size(mm*mm) | Base on project customized | ||||
| Best Viewing distance(M) | 4-200 | 5-200 | 6-200 | 8-200 | 10-200 |
| Max/Ave(W/m²) | Max 800W/m²，Ave：240W/m² | Max 550W/m²，Ave：100-150W/m² | |||
| IP Rating | IP65 front /IP54 Rear | ||||
| Contrast ratio | Contrast ratio:5000:1 | ||||
| Viewing Angle (H/V) | Horizontal: 160degree, Vertical: 1400degree | ||||
| Gray Scale (bit) | 16bit | ||||
| Frame frequen(HZ) | 50/60Hz | ||||
| Viewing angle(Deg) | Horizontal≥16°，Vertical≥140° | ||||
| Install/Maintenance way | Maintenance way:Rear mainntenance ;Install way;Rear side install | ||||
| Work Environment | Temperature-20℃-+80℃，Humidity 10%RH-95%RH | ||||
| Lifespan | Lifespan≥100000H, MTBF≥50000H | ||||
CV SeriesContact Us
Free Sample Available For your LED Display Project
Subject : Outdoor Creative Led Display
FAQ
The screen will spend much electronic?
No, AF plus is energy saving screen, it spend very less electronic, 1day only spend 1kwh/m2.
